AI WhatsApp Re-engagement

Making follow-up conversations more timely, relevant and actionable.

A lead who isn't ready to proceed today may still be worth speaking to tomorrow. I built an AI-assisted WhatsApp follow-up system to make re-engagement more conversational and to connect useful responses back into the sales workflow.

WatiClaudeSalesforce

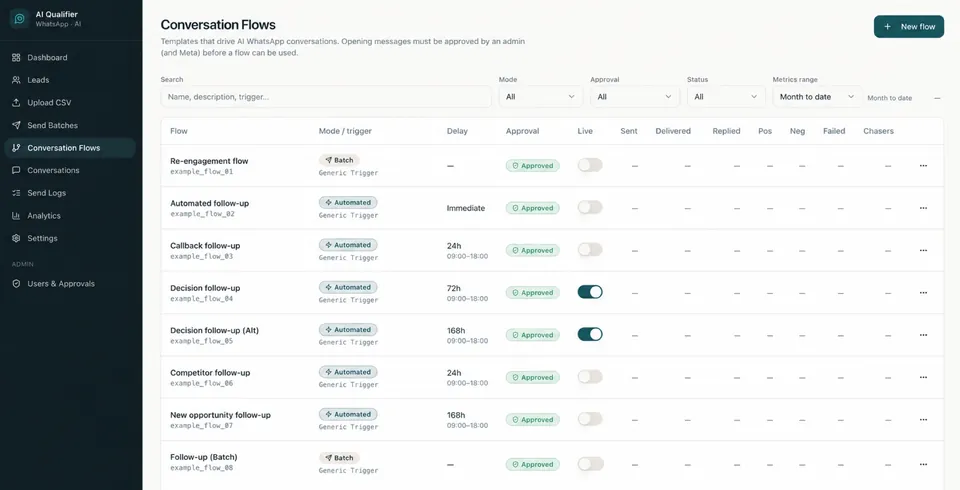

Anonymised dashboard for the AI WhatsApp re-engagement platformLive interface
My involvementIndependently designed and built; iteratively tested and refined
Project typeAI · CRM automation · Customer communications
StatusLive
TimeframeAbout 2–3 months

01 / The challenge

The challenge

Existing re-engagement journeys were largely email-based. Email remains useful, but it can be a relatively passive channel when a lead has a specific question or needs a timely response. The business needed a way to follow up based on a lead's status, handle replies and make sure worthwhile conversations reached the right person.

02 / My involvement

My involvement

I designed and built the system independently over approximately two to three months, spending substantial time testing scenarios and refining prompts and conversation rules. This was iterative prompt and workflow development — not model fine-tuning.

03 / How it works

How it works

The workflow connects Wati, Claude and Salesforce. Leads can enter status-specific follow-up journeys, with configurable delays and messaging designed around the reason they had not previously progressed.

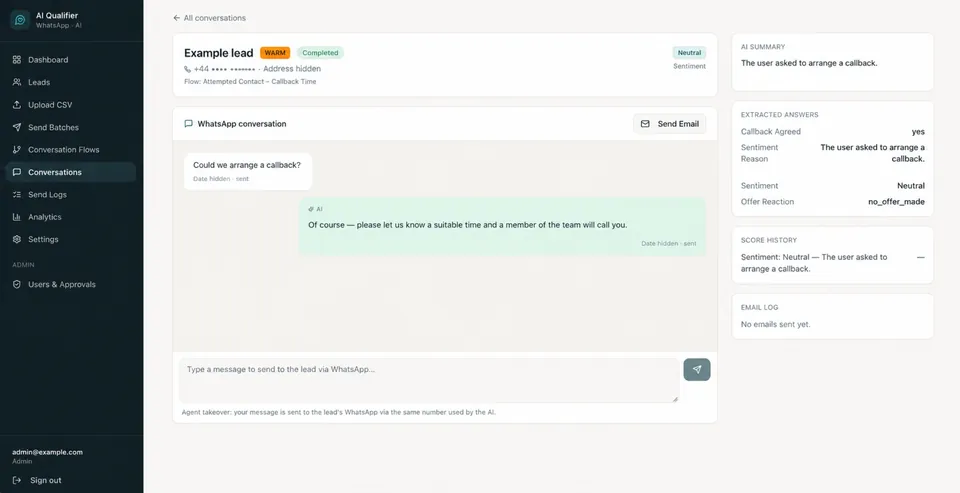

When a lead responds, an LLM helps handle the conversation within defined scenario objectives. Once the objective is met, the system creates a callback task in Salesforce and provides the relevant conversation transcript to the lead owner.

The goal is not to replace the salesperson or pretend the bot can close every conversation. It is to identify when someone is ready for human follow-up and make that hand-off useful.

04 / Key capabilities

Key capabilities

01

Status-aware outreach

Different lead circumstances can trigger different messages and follow-up timings.

02

Two-way conversation

Instead of a one-directional reminder, the system can respond to questions and move the conversation towards a defined next step.

03

CRM hand-off

Qualified re-engagement creates a callback task with the conversation context attached, helping the owner pick up where the exchange left off.

04

Ongoing refinement

Conversation prompts and scenarios were repeatedly tested and improved to make the system more reliable and appropriate for the use case.

05 / The outcome

The outcome

The system is live and has generated substantially more callback opportunities than the earlier email-led approach, with reactivated leads also progressing to contracts. The exact commercial figures are private and should not appear on the public site.

The practical benefit is a more connected journey from automated follow-up to a human conversation, with less context lost between the two.

06 / What I learned

What I learned

The most effective AI workflow is usually the one with a clearly defined boundary. In this case, the bot's job is to re-open a useful conversation and hand it back to a person at the right moment — not to act as an unrestricted sales agent.

System view

A simplified view of the moving parts.

Conceptual only. No confidential data or interfaces are shown.

01Lead status
02Delay
03WhatsApp
04AI reply
05Callback task
